Edmundson Building & Preservation, Sunderland

17.52kW JA Solar PV System Linked to a 15kW 3-Phase SolaX Inverter c/w WiFi Monitoring.

Edmundson Building & Preservation first contacted our company in 2021 when they had recently had an energy audit carried out by Narec. They were lucky enough to receive some funding for the commercial installation via Narec and BEST (Business Energy Saving Team) - more on the BEST SME funding can be found here - https://www.best-ne.co.uk/.

After a couple of revised quotations, we were the successful candidate chosen to install a 17.52kW JA Solar PV system linked to a 15kW 3-phase SolaX inverter c/w WiFi monitoring.

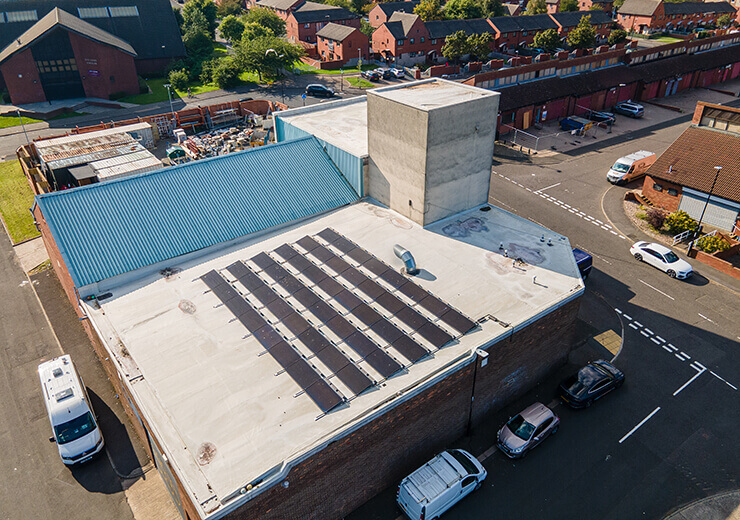

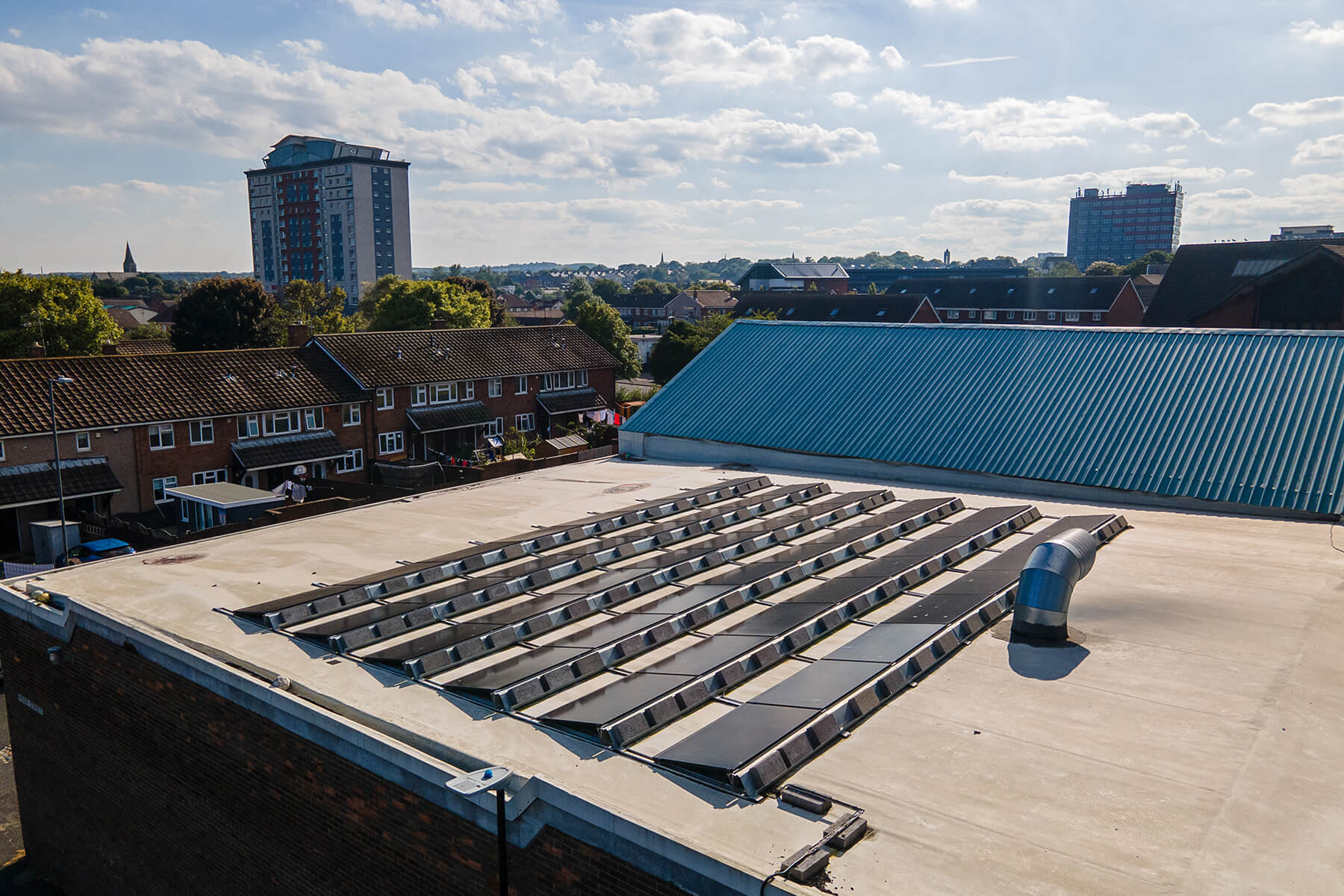

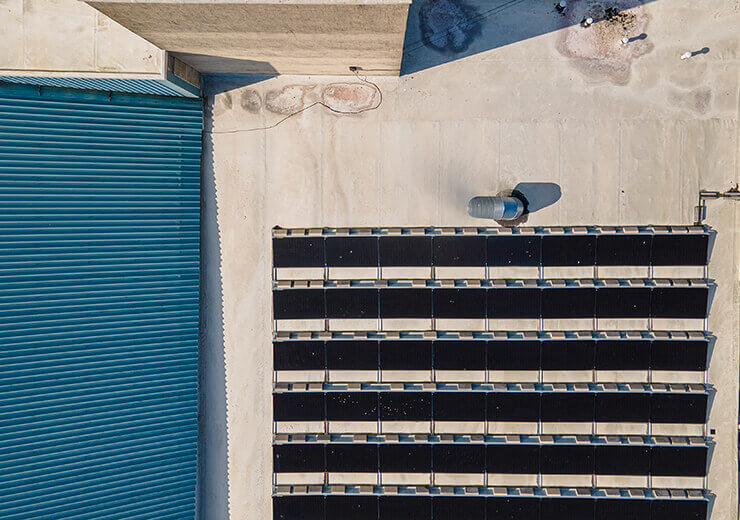

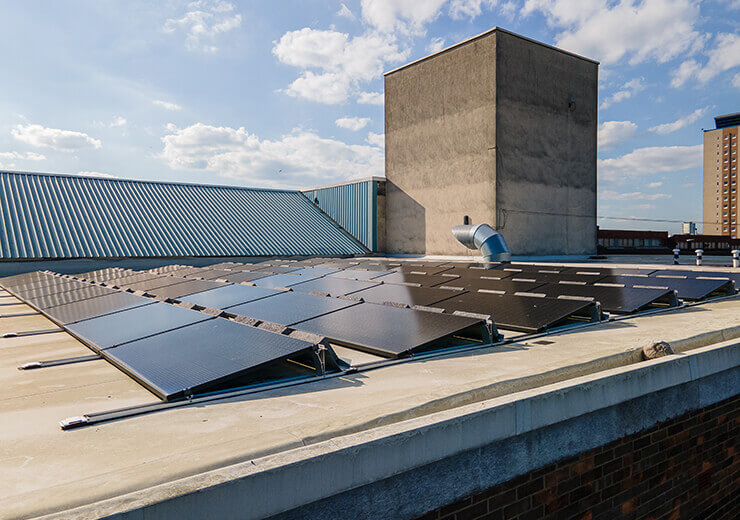

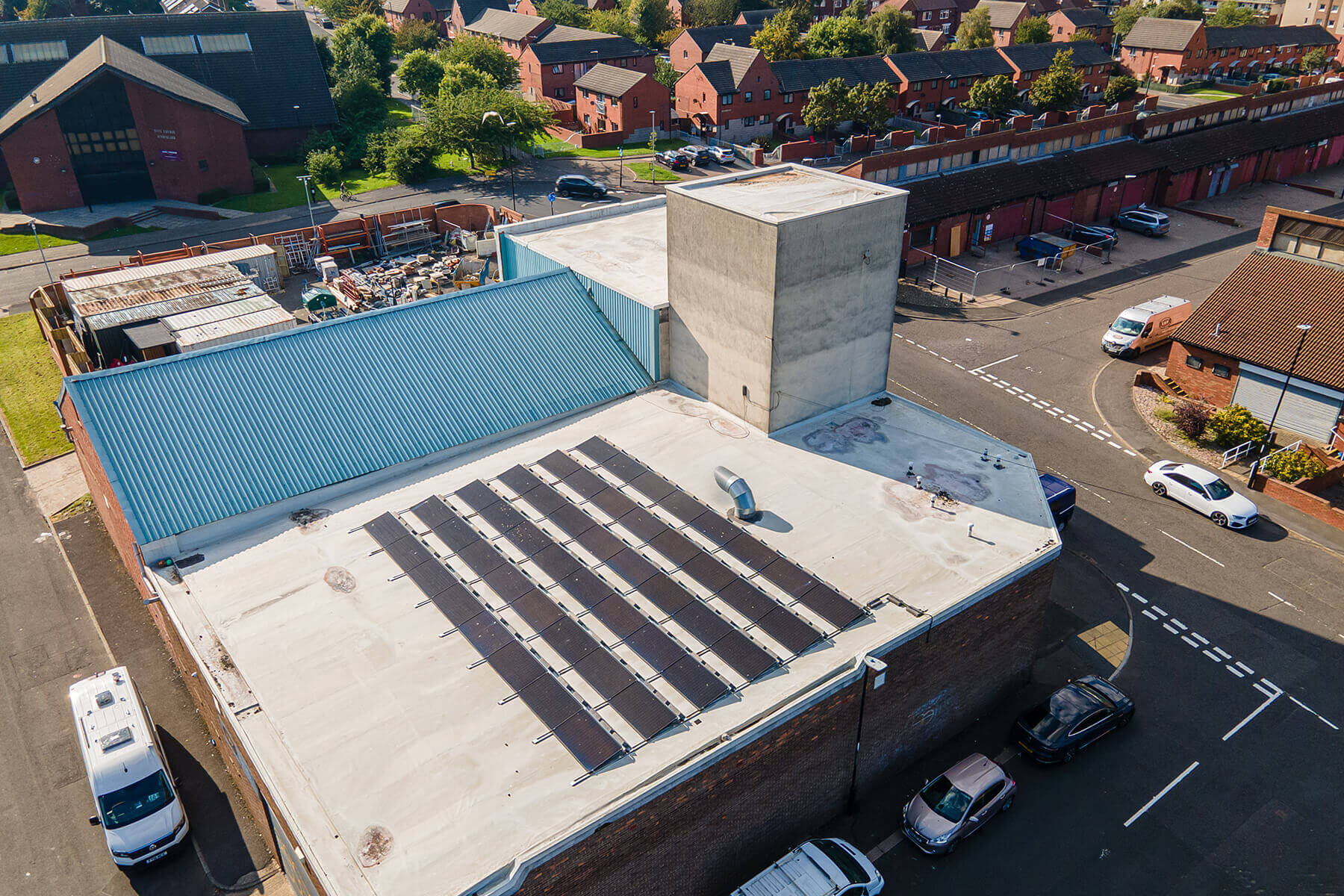

There was a total of 48 x 365W panels installed in early 2022. This shows how far the industry has come in 18 months, as we now have access to 430W+ PV panels from JA Solar and similar suppliers. As the property had a flat roof, we used the Renusol A-Frame mounting system, using ballast to keep the panels in place. This system shows you can install it on all roof types, whether flat or pitched.

The inverter installed was a SolaX 15kW 3-phase string inverter with WiFi monitoring. The SolaX inverters come as standard with a 10-year warranty and have consistently proven reliable.
